King Split Top / Flex Top Plug In Adapter (For new bases)

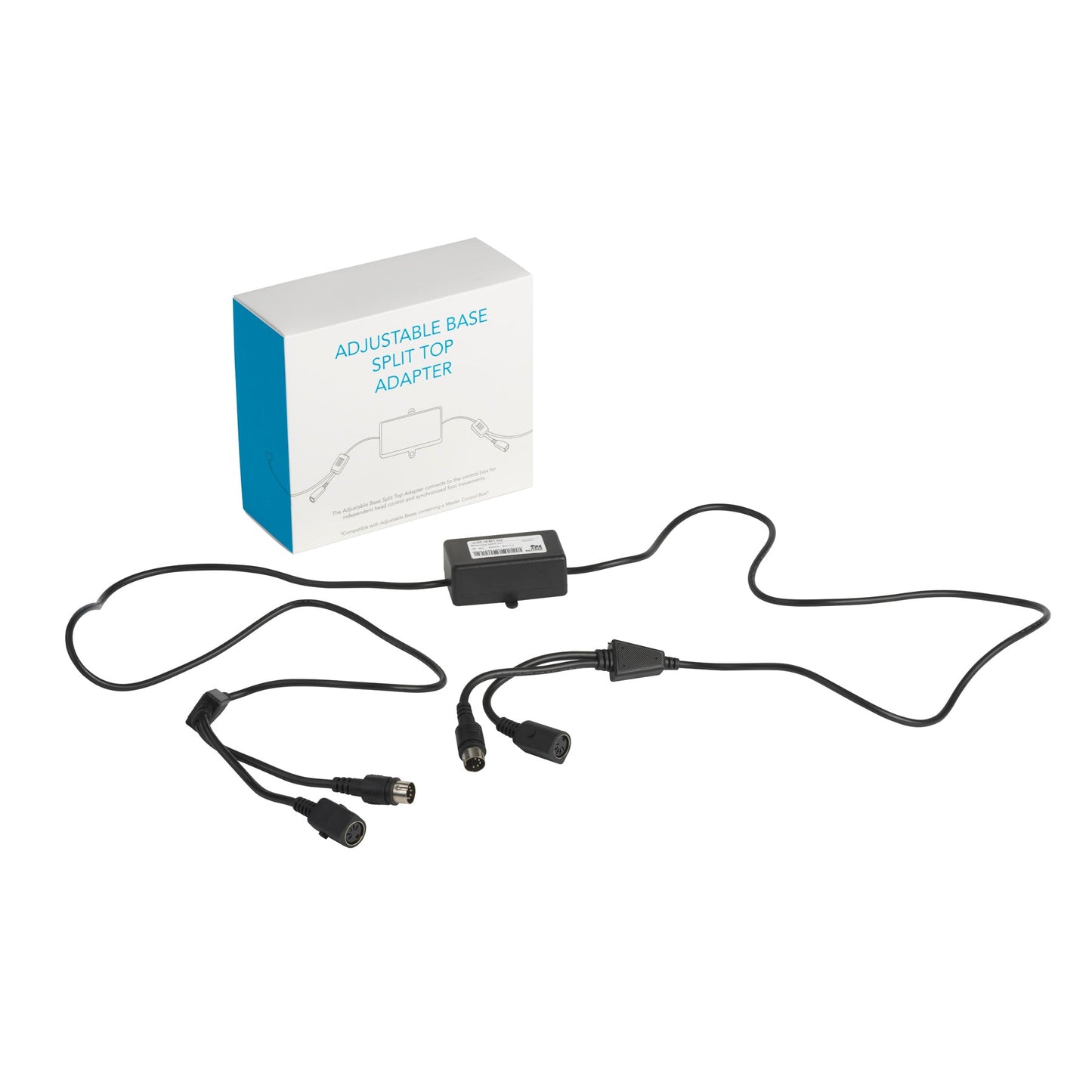

The Adjustable Base Split Top Adapter connects to the control box for independent head control and synchronized foot movements. Compatible with adjustable bases with a Master Control Box.

For: SBKD3, SBKDP2, SBKDT2, SBKDG2

How to install a Split Top Adapter

 Step 1: Unplug bases from the power source. If an existing sync cord is joining two bases, remove the sync cord from both bases.

 Step 2: Install the Splitters into each control box. Install Split Top Adapter Cable into the splitter of each base. If your adjustable base has Bluetooth Modules: only connect 1 Bluetooth module. (The connection of 2 Bluetooth Modules will cause malfunctions or phantom movements)

 Step 3: Plug the adjustable bases back into the power source and place the bases right side up for normal operation.

 Step 4: To enable/disable the Split Top Adapter function: Press and hold the “Flat” button on your remote for 5 seconds.

 When the Split Top Function is enabled:

• The control box will beep twice upon successful connection. The head movements will be independent and the foot movements will be synchronized.
• The A/B slider functionality will be disabled (If the A/B slider is used, it will disable the split head adapter functions)
• It will disable independent massage functionality
